60" Linear Direct Vent Fireplace
Styled to compliment any modern decor, this contemporary addition to the Majestic direct vent family offers an incredible wide viewing area and yet its compact design allows for easy installation in just about any space.
The Echelon's contemporary bronze glass beads and natural stone kit creates an ambiance of modern calm and compliments a sleek interior design style. With a BTU range of 20,000 to 50,000 and standard IntelliFire Plus Ignition System, the Echelon from Majestic is the perfect fit for today's contemporary lifestyle.

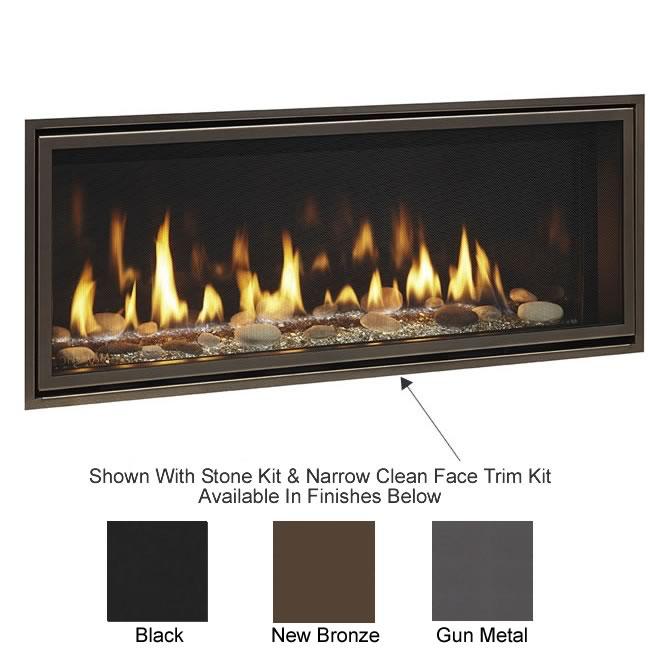

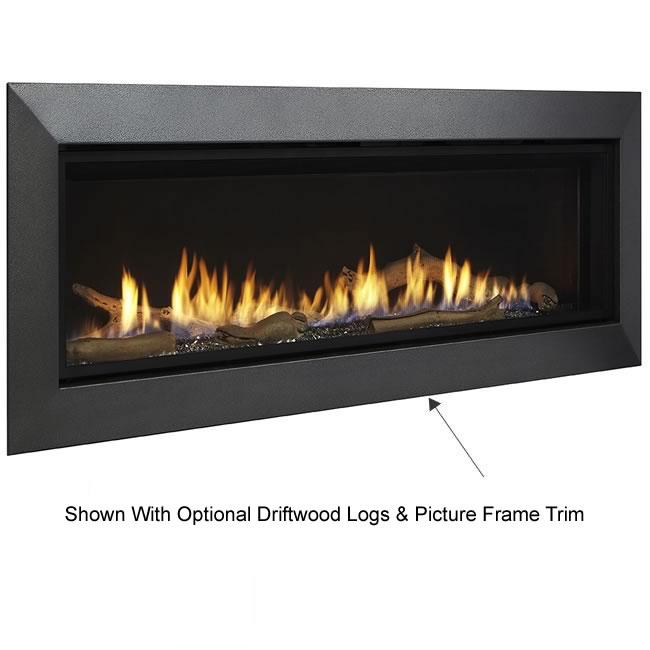

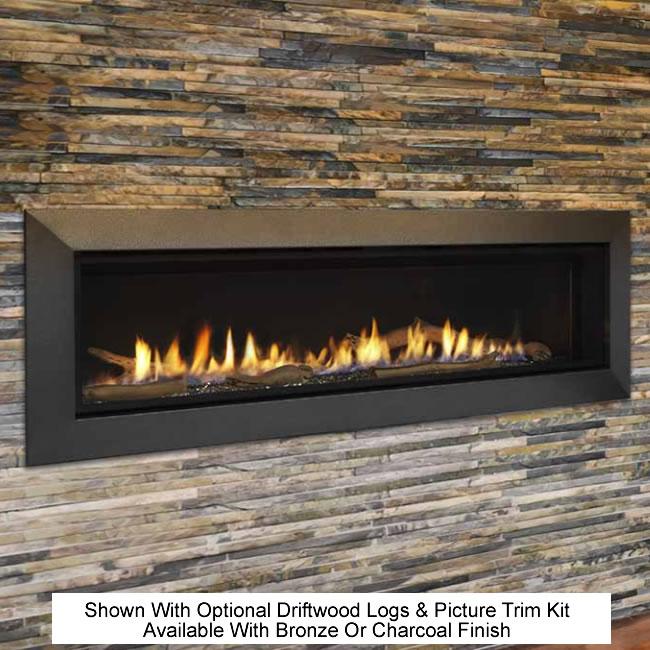

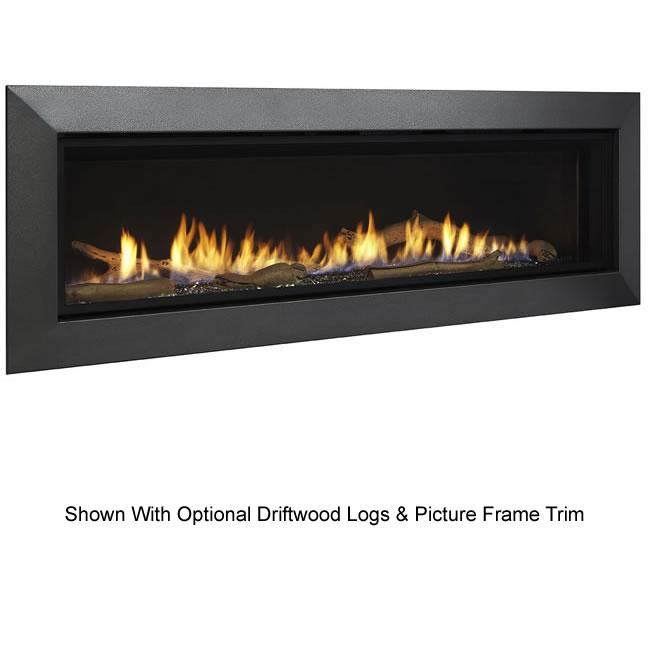

The Echelon II offers an optional driftwood log set you can turn the fireplace into a less contemporary unit and still keep a present-day decor. See images above for optional narrow clean face trim kits available in black, bronze or pewter finishes as well as a picture frame trim kit with a pewter or charcoal finish.
- Contemporary Bronze Glass comes standard
- 59-1/2" Wide X 12-1/2" High viewing area
- Anti-reflective glass with quick latch system for easy access
- Contemporary glass LED illumination light system

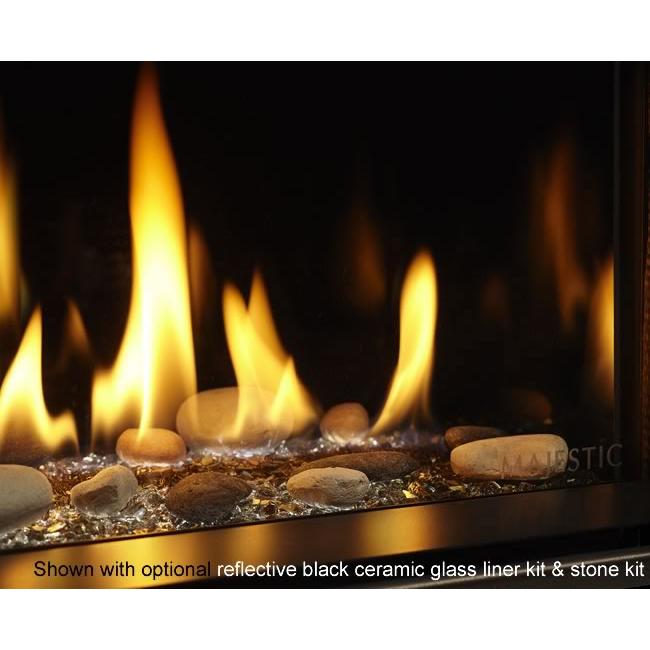

- Optional reflective black ceramic glass liner kit
- Optional trim kits
- Optional driftwood log set
- Multiple contemporary glass & stone choices available
- Unit comes set up for use with Natural Gas. Conversion kit required for Propane Gas
- Barrier Safety Screen
- Top venting uses DVP series 5" x 8" direct vent pipe (requires 36" rise before 90 elbow for horizontal runs)
- AFUE efficiency rated
- FE (Fireplace Efficiency as per CSA P4) listed
- 18" flex line with On/Off shut off valve included
- CSA design certified.
IntelliFire Plus Ignition System Control Features:
- Full function RC300 remote control (on/off, ﬂame height adjustment, lights adjustment, thermostat mode)
- A/C control with battery back-up
- Electronic ignition
- Cold climate pilot optional setting
- Hi/lo 5 step flame adjustment
- Accent light with three step dimming
Click Here To View Vent Pipe
|Optional Echelon II Wide View Fireplace Decorative Glass Media
* Bronze Glass Comes Standard With The Echelon II Fireplace
|Heat Zone Technology
Draw heat from your fireplace to another room in your home, up to 20 feet away. When a Heat-Zone kit is run continuously, it can redirect up to 25% of the heat to another area, also reducing wall temperatures above the fireplace. Two Heat-Zones run continuously will redirect up to 50% of the total heat output.
|Model Echelon II ECHEL60IN
||Natural or Propane
|BTU Natural Gas
|BTU Propane Gas
||72-1/4" Wide X 48" High X 18-1/4" Deep
|Glass View Dimensions
||59-1/2" Wide X 12-1/2" High
