With this 30 inch gas fire pit ring you design the surrounding and insert it into the opening! Install on brick, ground, cement, or any non-combustible surface. This fire pit ring is offered in two different burner options with precision drilled holes unlike the competition as they punch their holes creating an inconsistent flame. See more about burner options below.

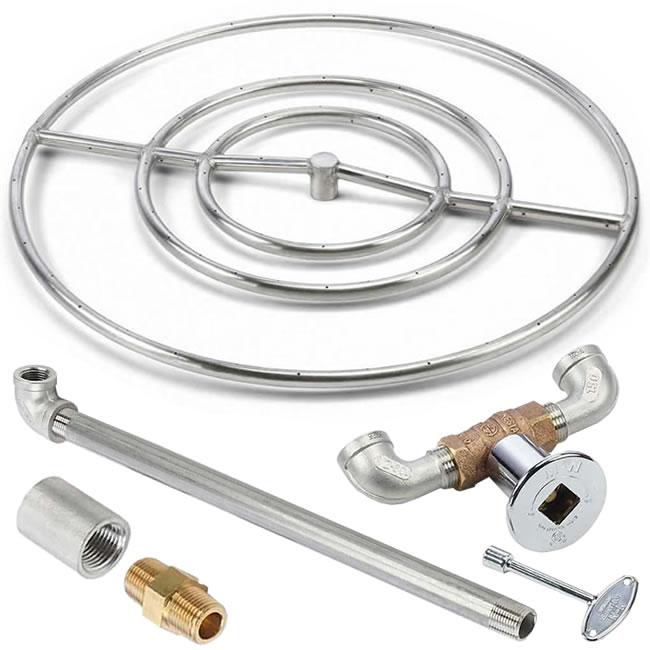

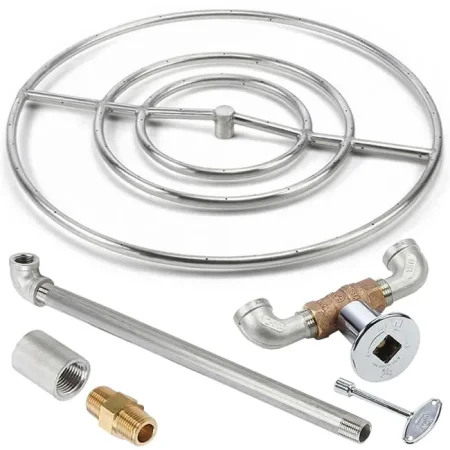

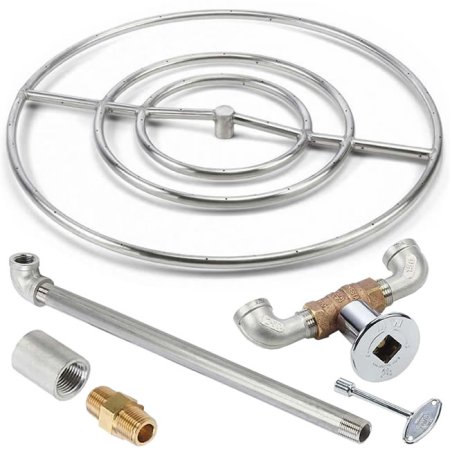

30" Ring Kit Features:
-
30" Penta or traditional style 304 stainless steel fire ring with .065" wall thickness
-
3 Concentric Rings
-
Raised center hub burner design to shed water
-
1/2" or 3/4" high capacity female thread pipe hub options
-
Stainless gas pipe & connection fittings
-
Key style gas valve
-
Traditional style burner total BTU output 300,000
-
Penta style burner total BTU output 250,000
-
Propane or natural gas applications
-
Can be used with optional burner pan and decorative outdoor log set
-
Optional lava rock to disperse the gas creating a realistic flame (Requires 100 Lbs)
-
Optional decorative glass media (Requires 120 Lbs)
Offered in two different burner styles options as shown below.
|
Choose Burner Preference At Checkout |
Penta Style Burner
-
30" max center flame height
-
Uniform & full flame form edge-to-edge
-
Innovative raised hub design - reduces unwanted water
-
No distinct burner pattern at low flame setting
-
Lower profile design requires less media
-
Preforms better than traditional burner when using optional glass media
-
250,000 BTU
The Penta burner not only looks different, it burns differently with lava rock & especially appealing with glass media. It's designed to deliver a more robust campfire effect with a very tall centered flame. This is accomplished by utilizing holes drilled at the 3, 9, and 12 o'clock positions of the stainless steel tubing for a broader flame.
|
Traditional Style Burner
-
22" max center flame height
-
Innovative raised hub design - reduces unwanted water
-
Burner ports are staggered for fuller flame pattern
-
Made from 304 stainless steel
-
Preforms better than penta burner when using fire pit logs
-
300,000 BTU
The traditional burner offers a high-center flame and works well when using decorative outdoor gas fire pit logs. The traditional style fire rings have staggered burner ports for a better flame pattern and a more significant flame presence. Both style burners have a raised center hub to reduce risk of water getting in the valve or gas line.
|
