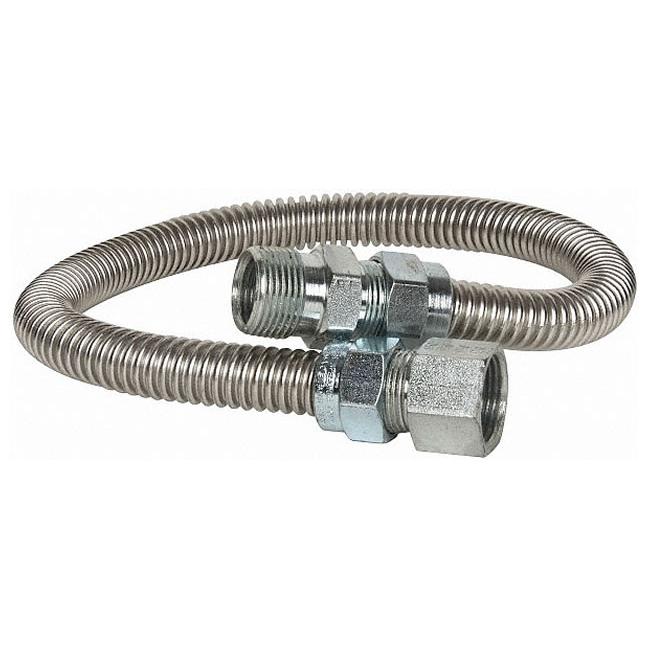

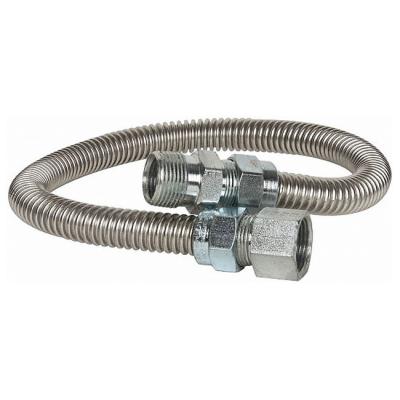

Our high capacity gas flex connectors come in four different lengths and are primarily used with our larger outdoor gas fire pit inserts. All ultra high capacity flex lines are 5/8" outside diameter and 1/2" inside diameter with 1/2" female pipe threads on one end and 1/2" male pipe threads on the other. If you have questions about what size flex line to use for your fire pit please contact us.
Features:
-
Approved for outdoor use
-
304 stainless steel annealed tubing
-
Plated steel flare nuts & adapters
-
Eliminates the need for pipe nipples, 90's and elbows
-
100% leak tested
|
High Capacity Flex Connector Specifications |
|
Length |
Max BTU Rating On Natural Gas |
Max BTU Rating On Propane Gas |
Flare Size |
Fittings Included |
|
12" |
180,000 |
288,000 |
3/4" |
1/2" MIP x 1/2" FIP |
|
18" |
164,000 |
262,700 |
3/4" |
1/2" MIP x 1/2" FIP |
|
24" |
150,000 |
240,000 |
3/4" |
1/2" MIP x 1/2" FIP |
|
30" |
136,000 |
217,600 |
3/4" |
1/2" MIP x 1/2" FIP |
