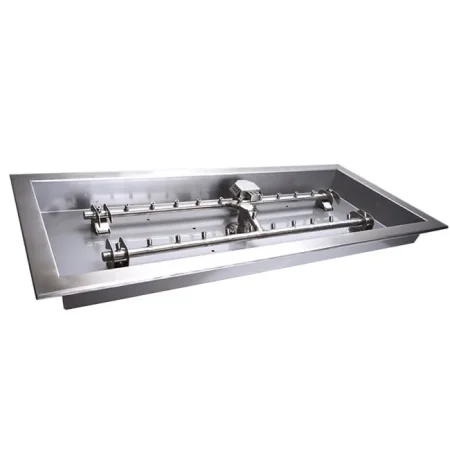

Rectangle Fire Pit Pans With Burner

Rectangle Fire Pit Pans With Burner

List Price:

$298.00
Sale Price: $283.10

Qty:

Always Free Shipping Payments Accepted



Product Description

  • Model: **X**SS-H

The rectangle fire pit burner pan are offered in 8 different sizes ranging from 24" up to 90" in width. All inserts comes standard with our stainless steel burner pan, 18 gauge stainless steel H-Burner with precision drilled holes unlike the competition as they punch their holes creating an inconsistent flame. Need a Flexible Gas Supply Connector? We have them also. The solid 304 stainless steel construction will provide many years of enjoyment. All models comes with a 1/2" nipple welded into the center of the pan for connection of fire ring and gas source, vent slots for flame enhancement and water drainage. Simply build your fire pit enclosure and drop the burner pan into place.

We also offer an optional high quality Vinyl Cover or Stainless Steel Cover to protect the fire pit from harsh weather and Wind Guards. Our new Key Valve Paver Block Mounting Bracket for mounting the gas control valve in the side of the surround is also available if needed. See more about our H style burners below.

24" Rectangular Kit Features:

  • 18" X 6" Stainless H-Burner
  • 24" X 12" Rectangular Stainless Bowl Burner Pan
  • Optional Glass Media or Lava Rock
  • Holds 25 Lbs Of Lava Rock
  • Holds 35 Lbs Of Decorative Glass
  • Optional Fire Pit Logs
  • 60,000 BTU Total Output
  • Optional 1/4 Turn Gas Key Valve
  • Fully Assembled
  • Available In Natural Gas & Propane
  • Pan Support Cutout Opening: 25" W X 13" D X 14" H

30" Rectangular Kit Features:

  • 24" X 6" Stainless H-Burner
  • 30" X 12" Rectangular Stainless Bowl Burner Pan
  • Optional Glass Media or Lava Rock
  • Holds 50 Lbs Of Lava Rock
  • Holds 40 Lbs Of Decorative Glass
  • Optional Fire Pit Logs
  • 90,000 BTU Total Output
  • Optional 1/4 Turn Gas Key Valve
  • Fully Assembled
  • Available In Natural Gas & Propane
  • Pan Support Cutout Opening: 31" X 13" D X 14" H

36" Rectangular Kit Features:

  • 30" X 8" Stainless H-Burner
  • 36" X 14" Rectangular Stainless Bowl Burner Pan
  • Optional Glass Media or Lava Rock
  • Holds 50 Lbs Of Lava Rock
  • Holds 55 Lbs Of Decorative Glass
  • Optional Fire Pit Logs
  • 90,000 BTU Total Output
  • Optional 1/4 Turn Gas Key Valve
  • Fully Assembled
  • Available In Natural Gas & Propane
  • Pan Support Cutout Opening: 37" W X 15" D X 14" H

42" Rectangular Kit Features:

  • 36" X 8" Stainless H-Burner
  • 42" X 14" Rectangular Stainless Bowl Burner Pan
  • Optional Glass Media or Lava Rock
  • Holds 75 Lbs Of Lava Rock
  • Holds 70 Lbs Of Decorative Glass
  • Optional Fire Pit Logs
  • 150,000 BTU Total Output
  • Optional 1/4 Turn Gas Key Valve
  • Fully Assembled
  • Available In Natural Gas & Propane
  • Pan Support Cutout Opening: 43" W X 15" D X 14" H

54" Rectangular Kit Features:

  • 48" X 10" Stainless H-Burner
  • 54" X 16" Rectangular Stainless Bowl Burner Pan
  • Optional Glass Media or Lava Rock
  • Holds 100 Lbs Of Lava Rock
  • Holds 100 Lbs Of Decorative Glass
  • Optional Fire Pit Logs
  • 150,000 BTU Total Output
  • Optional 1/4 Turn Gas Key Valve
  • Fully Assembled
  • Available In Natural Gas & Propane
  • Pan Support Cutout Opening: 55" X 17" D X 14" H

66" Rectangular Kit Features:

  • 60" X 10" Stainless H-Burner
  • 66" X 16" Rectangular Stainless Bowl Burner Pan
  • Optional Glass Media or Lava Rock
  • Holds 150 Lbs Of Lava Rock
  • Holds 120 Lbs Of Decorative Glass
  • Optional Fire Pit Logs
  • 250,000 BTU Total Output
  • Optional 1/4 Turn Gas Key Valve
  • Fully Assembled
  • Available In Natural Gas & Propane
  • Pan Support Cutout Opening: 67" W X 17" D X 14" H

78" Rectangular Kit Features:

  • 72" X 10" Stainless H-Burner
  • 78" X 16" Rectangular Stainless Bowl Burner Pan
  • Optional Glass Media or Lava Rock
  • Holds 150 Lbs Of Lava Rock
  • Holds 140 Lbs Of Decorative Glass
  • Optional Fire Pit Logs
  • 300,000 BTU Total Output
  • Optional 1/4 Turn Gas Key Valve
  • Fully Assembled
  • Available In Natural Gas & Propane
  • Pan Support Cutout Opening: 79" W X 17" D X 14" H

90" Rectangular Kit Features:

  • 84" X 10" Stainless H-Burner
  • 90" X 16" Rectangular Stainless Bowl Burner Pan
  • Optional Glass Media or Lava Rock
  • Holds 200 Lbs Of Lava Rock
  • Holds 160 Lbs Of Decorative Glass
  • Optional Fire Pit Logs
  • 300,000 BTU Total Output
  • Optional 1/4 Turn Gas Key Valve
  • Fully Assembled
  • Available In Natural Gas & Propane
  • Pan Support Cutout Opening: 91" X 17" D X 14" H

H-Burner Features

Our H-Burner is the best burner for linear gas fire pits, the flame is extremely realistic with lava rock & especially appealing with glass media. It's designed to deliver a more robust flame effect for long fire pits. This is accomplished by utilizing holes drilled at 30 degrees for and inward flame pattern.

  • Uniform & full flame
  • Innovative raised hub design - reduces unwanted water
  • No distinct burner pattern at low flame setting
  • Lower profile design requires less media

Why Our Fire Pits Are Better Than Most

Gas Fire Pit Controls Explained

What To Know When Building A Fire Pit Enclosure

Fire Pit Clearances

Product Manuals & Downloads

Additional Information

  • Product is [Available] with 12 Units in Stock
  • Manufactured by: Hearth Products Controls
  • Condition: New
  • Category: Fire Ring Burner Pans
  • Available at: Fine's Gas
  • Average Delivery Lead Time: 4 days
  • Payments Accepted: American Express, PayPal, Visa, MasterCard & Discover

Reviews

Be the first to write a review. Write a Review
